RS-901D Automatic Electrolytic Capacitor Radial Lead Cutting Forming Machine
Intro:
RS-901D is special customized machine for 10-16MM body diameter E-caps. Body height should be within 25MM. For bigger size, we can modify the machine a little. This radial lead cutting machine can automatic feed and trim capacitor leads to shortest 3.0MM. For different length, operator just need to rotate the shaft to adjust the cut length. With trolly, customer can move the machine easily.
Usage:

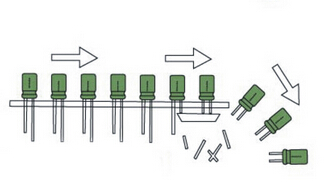

- Cut Electrolytic Capacitor lead to same length. See picture below
- E-Capacitor body diameter should be within 10-16MM
- E-Capacitor body height should be within 25MM
- Feeder bowl can be customized according to customers's components and size.
Electrolytic capacitor lead Cutting Machine Usage:
Lead Cutting Machine Specification:
| Model | RS-901D |
| Voltage | AC 220V/110V 50hz 60Hz |
| Size | 1050 x 1100 x 650mm |
| Weight | 165KG |
| Efficiency | 6000-8000 PCS/H
|
| Package | Wooden case |
Features:
1. Machine is for cutting radial components lead foot ,such as bulk capacitor, inductor,LED and etc.
2. Small volume, easy to hand operation can be installed in the desktop use, without being limited by the space;
3. Its cutting way is very special. Made of steel materials imported from Japan, its cutters are durable and easy to adjust.
4. It works accurately with a minimum of 3mm. (If you want the machine more accurate, we can customize it for you.)
5. Electric-driven as well as pneumatic-driven, it feeds stably and quickly.
6. The lead cutting machine and the feeding tray can work either jointly or individually.
7.The trolley makes machine move easily
Radial Lead cutting samples
Machine picture display

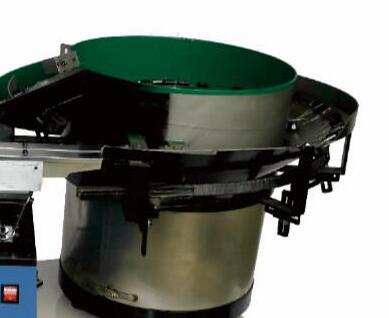

Special Feeding Methord For Big Capacitor

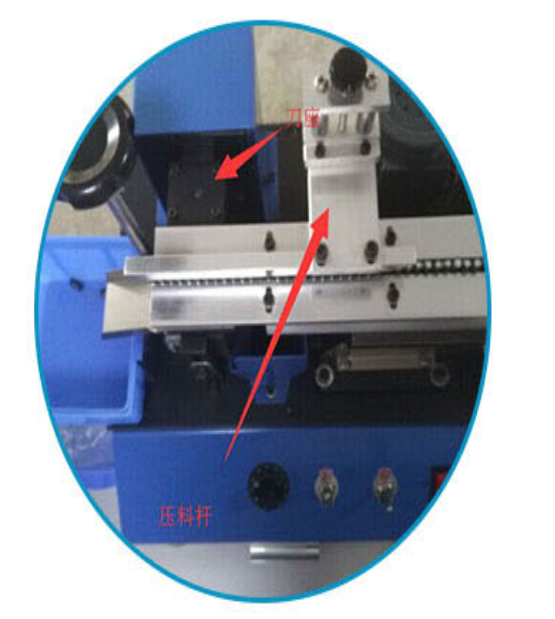

Pressing Parts to avoild different leg length cutting
Knife Holder- Fix static blade

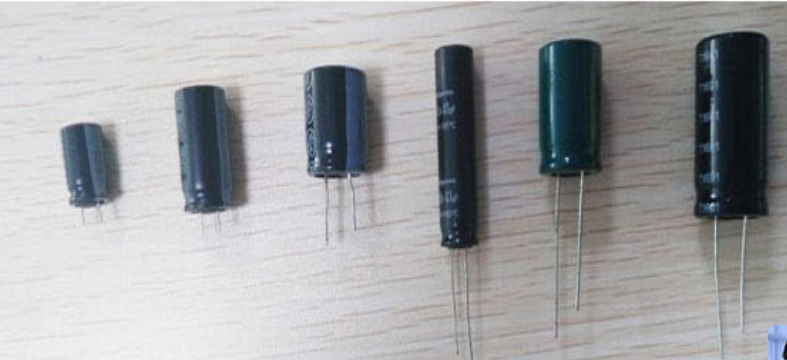

Radial Lead Cutting Samples
Welcome to contact for our automatic electrolytic capacitor lead trimming machine.
